Air-heater 12V Autoterm 2D-12+Tank 7,5L

SB.4390T



Parameter Code

Version

PLANAR–2D–12

PLANAR–2D–24

Nominal Supply Voltage, V

12

24



Fuel Type

Diesel Oil



Heating Efficiency:



1,8

max, kW,

min, kW,

0,8

Heated Air Volume:



75

Max , m3 /h

Min, m3 /h

34

Fuel Consumption at:



0.24 (0.06)

Max power, l/h (gal/h)

Min power, l/h (gal/h)

0.1 (0.03)

Heater power consumption, W



29



29

Doesn’t exceed while heating

mode

Max, W

Min, W

10

10

Start/Stop Mode

Manual

Maximum Weight, kg

3

More details

446,28 €

More info

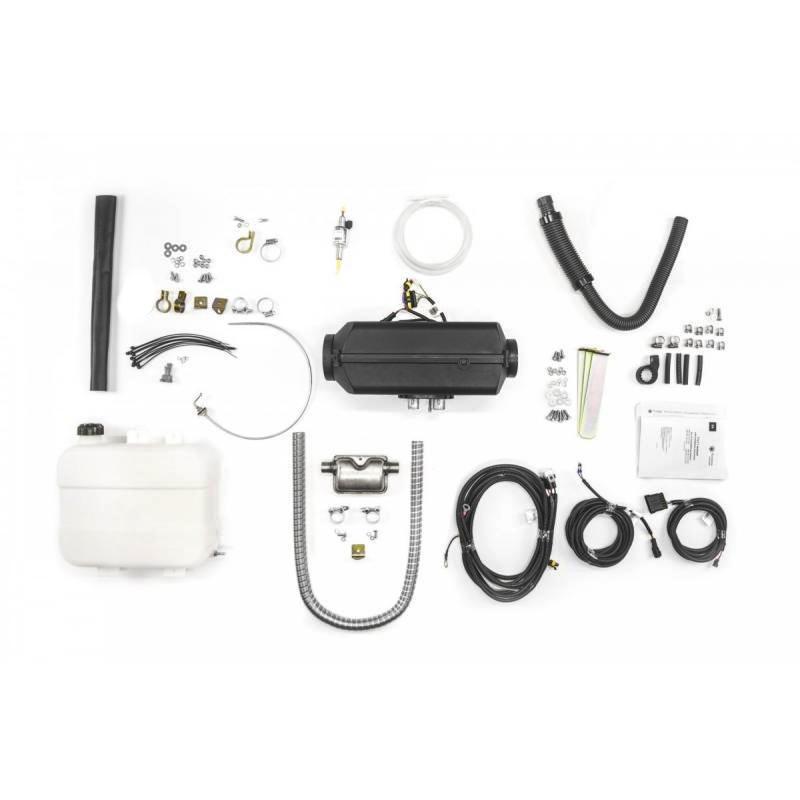

The heating device is independent heating unit that consists of:

-heater 2kW (MOUNTAIN KIT),
-silent fuel pump;
-exhaust pipe Ø24mm (1 meter);
-isolation (0,45 meter);
-exhaust silencer;
-cable for pump;
-cabel for control panel (1,8 meter)
-cable for battery(6,5 meter )
-tank 7L.

This kind of a heater is on sale in a set together with a tank 7,5l. This makes the heater independent of the availability of the fuel source and allows to use it for construction trailers, crane cabins or for small country houses.
